Flushing Ring
Material : Alloy Steel, Stainless Steel, Duplex Steel, Nickel Alloys, Superalloys, Titanium, Tantalum Connection : In-built with Seal, As per Flange Size 6 rating
Pulsation Dampener
Type : Adjustable Screw Connection : BSPP, NPT etc. Material : SS304, SS316, SS316L, Monel, Hastelloy ‘C-276’ etc. Pressure : 400bar
Gauge Saver
Type : Bellow, Piston Range : 0.6 bar to 400 bar Connection : BSPP, NPT etc. Material : SS304, SS316, SS316L, Monel, Hastelloy ‘C-276’ etc. Pressure : 600bar
Siphon
Type : Coil. Pigtail (Q), U Connection : BSPP, NPT etc. Material : SS304, SS316, SS316L etc. Pressure : According pipe size & schedule
Gauge Cock
Type : 2-Way or 3-Way Connection : BSPP, NPT etc. Material : SS304, SS316, SS316L etc. Pressure : 100bar
Miniature / Fixed Range Type – Flush Type / Diaphragm Type Pressure Transmitter
Product : Pressure Transmitter Range : Vacuum To 2200 bar Long Term Drift : 0.25% FS/YR (non-cumulative) Wetted Parts : 17-4 PH Stainless Steel Supply Voltage : 8-30 V DC Output(2-wire) : 4-20 mA / 0-10 V /1 -5 V Output signal : 4-20mA, 4-20mA+HART, 0-5VDC
Capillary / Direct Flanged Type DP / Level / Flow Transmitter
Measuring range : 4kPa-1MPa Output signal : 4-20mA, 4~20mA/HART Accuracy : ±0.2% URL, ±0.5% URL Media temperature : -40-120℃ Diaphragm material : SUS316L, Hastelloy C
Differential Pressure Transmitter
Measuring range : 200Pa-10MPa Output signal : 4-20mA, 4~20mA/HART Accuracy : ±0.075% URL, optional ±0.05% URL Media temperature : -40-120℃ Power supply : 4~20mA two wire, 10.5-55vdc 4~20mA+HART two wire, 16.5-55vdc Diaphragm material : SUS316L, Hastelloy C
Smart Absolute / Gauge Pressure Transmitter
Product : Pressure Transmitter Precision : 0.075% of Span for all ranges Turn Down Ratio : 100:1 for all models Stability : ±0.15% of URL

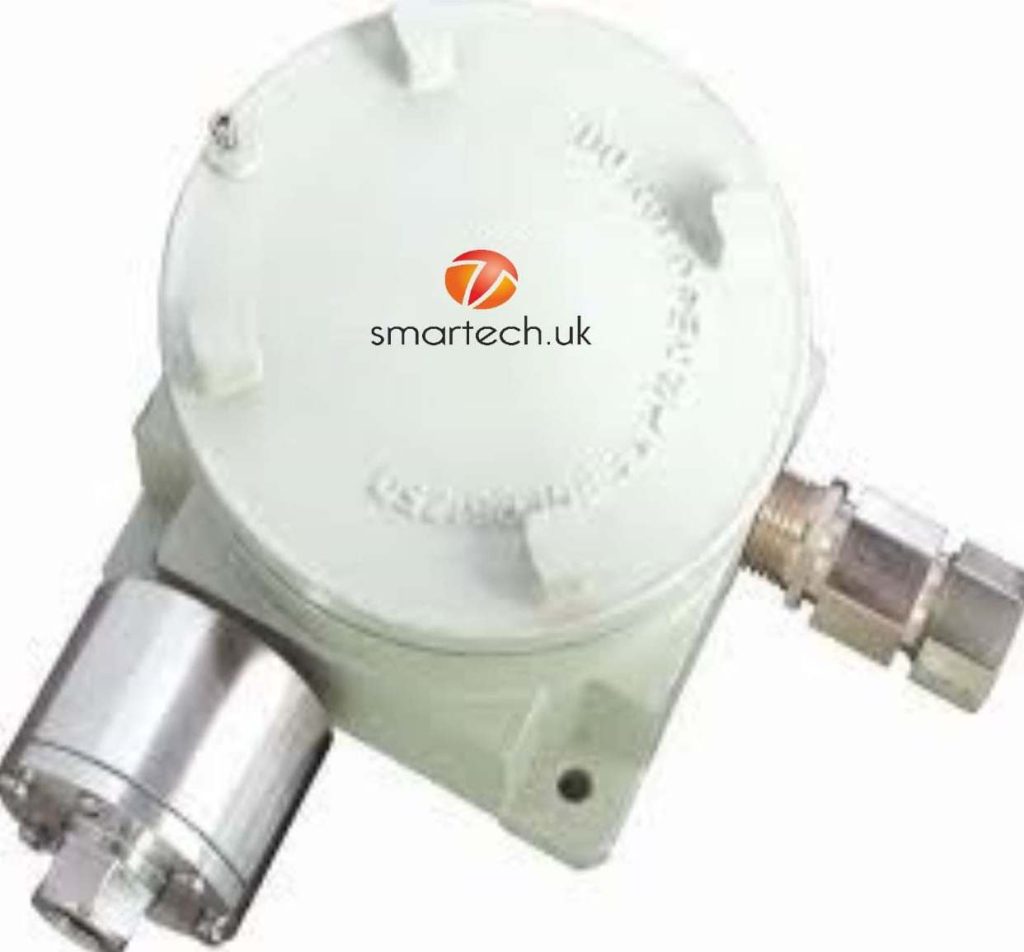

Explosion /Flame Proof Differential Pressure Switches
Repeatability : ± 0.5% F.S. Sensing Elements : AISI 316 SS, Diaphragm Switch : 1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request) Mounting : Bottom / Panel Enclosure Material : Aluminum pressure die cast
