Explosion /Flame Proof Pressure Switches
Repeatability : ± 0.5% F.S. Sensing Elements : AISI 316 SS, Diaphragm Switch : 1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request) Mounting : Bottom / Panel Enclosure Material : Aluminum pressure die cast
Weather Proof Pressure Switches
Repeatability : ± 0.5% F.S. Sensing Elements : AISI 316 SS, Diaphragm Switch : 1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request) Mounting : Bottom / Panel Enclosure Material : Aluminum pressure die cast
Utility Pressure Switches
Repeatability : ± 2% F.S. Sensing Elements : Phosphor Bronze Bellow Switch : 1 SPDT, 15A,220 VAC / 10A,24 VDC Mounting : Bottom / Panel Enclosure Material : Steel (plated) with Plastic cover
Differential Pressure Gauges – Piston Operated
Dial Size : 63mm, 100mm & 150mm Ranges : 25mbar to 4bar 200bar Static Pressure : 200bar Wetted Parts : SS 316 Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL1.6 & CL 2.5
Differential Pressure Gauges – Single & Double Diaphragm
Type : Single & Double Diaphragm Dial Size : 100mm & 150mm Ranges : -6000mmWC to 0 250mmWC to 16bar Static Pressure : 60 bar (Single Diaphragm) & 100bar (Double Diaphragm) Wetted Parts : SS 316, Monel & Hastelloy ‘C-276’ Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL1.6 & CL 2.5 […]
Transmitter Full SS Pressure Gauge
Dial Size : 100mm & 150mm Ranges : -1 to 0….0.6 to 600 bar Wetted Parts : SS 316L & Monel Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL 0.5 (Transmitter) Transmitter : 2 Wire, 24V DC Dampening Liquid : Dry, Fillable & Filled Standard followed : EN837-1, ANSI B40.1, IS […]
Electric Contact Standard Full SS Pressure Gauge
Dial Size : 100mm & 150mm Ranges : -1 to 0….0.6 to 2100 bar Wetted Parts : SS 316L & Monel Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL 0.5, CL 1.0 & CL 1.6 Dampening Liquid : Dry, Fillable & Filled Standard followed : EN837-1, ANSI B40.1, IS 3624 & […]

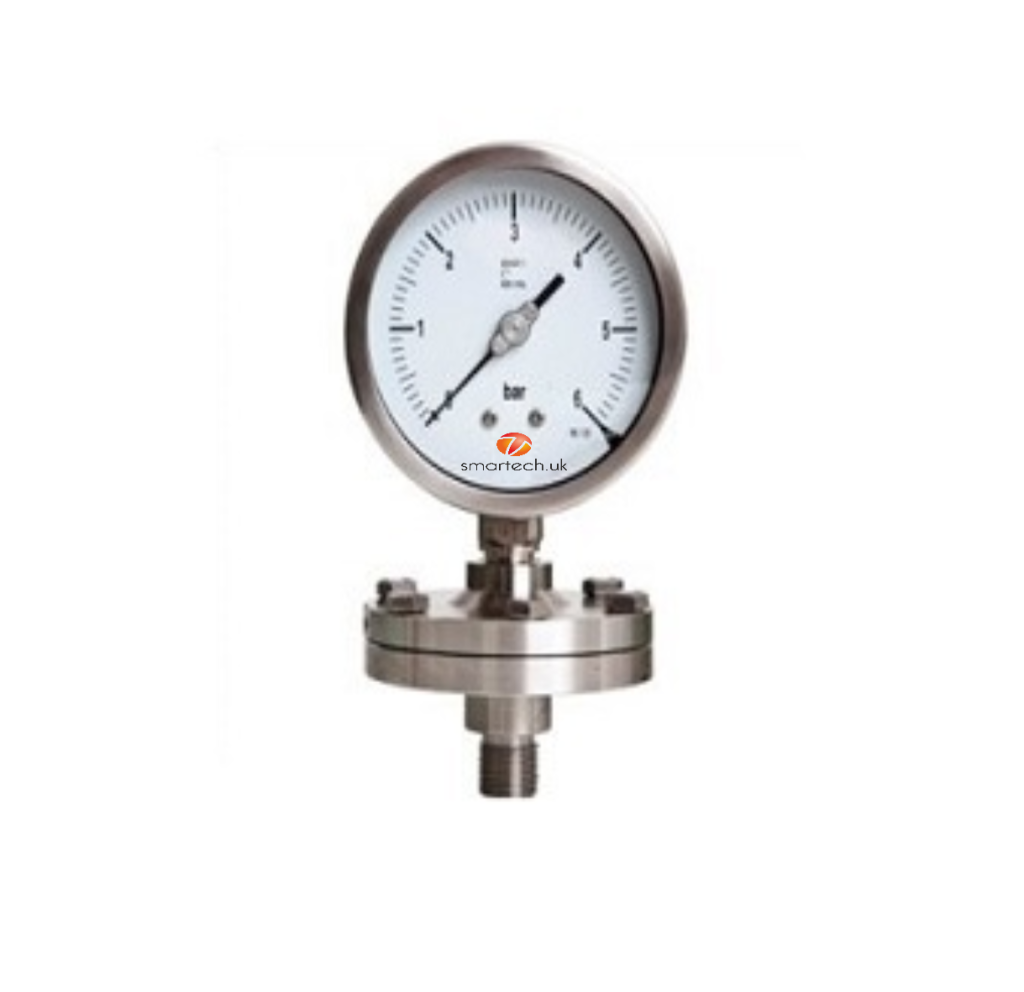

Low Pressure Diaphragm Pressure Gauge
Dial Size : 100mm & 150mm Ranges : 1bar to 16bar & 0….250mmWC Wetted Parts : SS 316, Monel & Hastelloy ‘C-276’ Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL 1.6 Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards
SS Case Brass Pressure Gauge
Dial Size : 40mm, 50mm, 63mm & 100mm Ranges : -1 to 0….0.6 to 700 bar Wetted Parts : Copper Alloy Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL1.6 & CL 2.5 Dampening Liquid : Dry, Fillable & Filled Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / […]
Phenol Case Solid Front Pressure Gauge
Dial Size : 4.5” Ranges : -1 to 0….0.6 to 2100 bar Wetted Parts : SS 316L & Monel Mounting : Bottom, Back and with mounting bracket accessories Stem Mounting : Accuracy : CL 0.5 Dampening Liquid : Dry, Fillable & Filled Standard followed : ANSI B40.1
